ARSF-0800-15

Total load resistance Shelf load capacity
(Included shelf weight)
Floor load Inside dimension
(W x H x D)
Ramp Rate Range
100 37.9 100 1,000 x 980 x 800 mm Pull down rate : 15°C/ min
Heat up rate : 15°C/ min
Temperature : -70°C to +180°C
Humidity : 10%RH to 98%RH

Rapid-Rate Temperature Cycle Type NEW

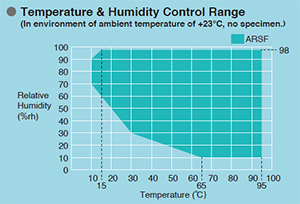

Temperature & humidity range

Minimum temp.: -70°C

Maximum temp.: +180°C

Humid.: 10 to 98%rh

Totally frost-free

Frosting will not appear on any part of the unit despite the temperature & humidity control range of range from 10 to 98%rh. Eradicating the need to remove frosting provides stable and continuous operations.

Big tolerance for heat load

Temperature only: up to 9000W
Temp. & humid.: up to 550W
Allowable heat load is different depends on models and operation conditions. Please refer to our brochure for the details.

Energy-saving with Dual PID Control

Dual PID Control (Proportional-Integral-Differential: control that enables the segmentation of refrigeration capacity) mostly controls only the refrigerator at 0°C or lower, thereby saving energy.

Specimen temperature control (optional)

Attaching a temperature measurement sensor to the specimen enables the temperature of the specimen to be monitored and controlled.

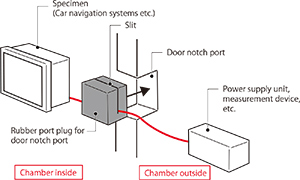

Easy access to specimen

Equipped with cable ports on both right & left sides as standard.
Door notch port is also available to put cables through the door (option).

* Totally frost free, no limitation of continuous operation.

Instrumentation

Door notch port

Top
