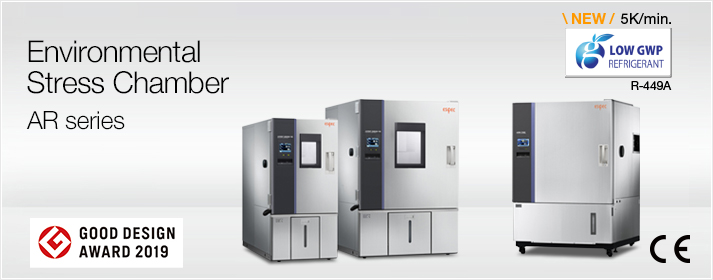

Environmental Stress Chamber AR series

Overview of Equipment

Temperature change rates from of 3, 5, 10, 15 or 18K/min.

Advanced Reliability

AR series has a large tolerance for heat loads generated by the specimen, and achieves improved temperature change rate in an expanded temperature and humidity range. The new N-instrumentation allows AR series chambers to support an easy-to-use networking system.

Two product types

  • Rapid-Rate Temperature Cycle Type
  • 6K/min per IEC 60068-3-5 (meeting the performance requirement of 5K/min. such as IEC 60068-2-14Nb.) NEW!
  • Standard Type

The product lineup consists of 28 models that can be selected in accordance with temperature & humidity range, inside capacity and temperature change rate.

Test Standard Conformance

IEC 60068-2-1 : Cold

IEC 60068-2-2 : Dry heat

IEC 60068-2-14 Nb : Change of temperature with specified rate of change

IEC 60068-2-30 : Damp heat, cyclic (Rapid-Rate Temperature Cycle Type)

IEC 60068-2-38 : Composite temperature/ humidity cyclic test

IEC 60068-2-78 : Damp heat, steady state

ISO 16750-4(5.3) : Road vehicles, Temperature cycling tests

Wide temperature range up to 200°C

High temperature testing up to +200°C is possible (option).

International safety standards

Conforms to ISO12100 and IEC60204, IEC61000 and EN50581 to CE marking requirements based on EU directives: Low voltage directive, EMC directive, machinery directive, pressure equipment directive, and RoHS directive.

Remote monitoring and control thanks to a web application

No software required, an innovative web browser application allows to monitor and control the chamber with a computer via the chamber standard Ethernet/LAN port. Mobile PC, tablet, and smart phone with multiple chamber connections possible by wireless connection.

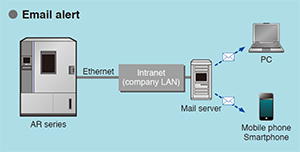

Email alert

When an alarm is triggered, an e-mail is sent to the registered PC or mobile address. A notification can also be sent at the time of test completion.

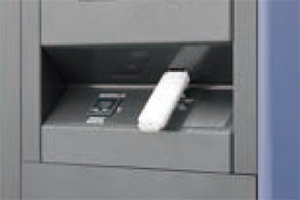

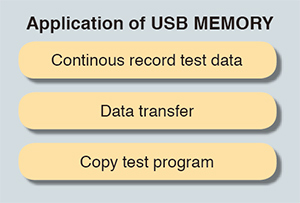

Copy your test programs, output data on USB memory

Without the need of a PC, copy and transfer your test profiles from one chamber to another. You can also download temperature and humidity data from the chamber for editing on your PC.
