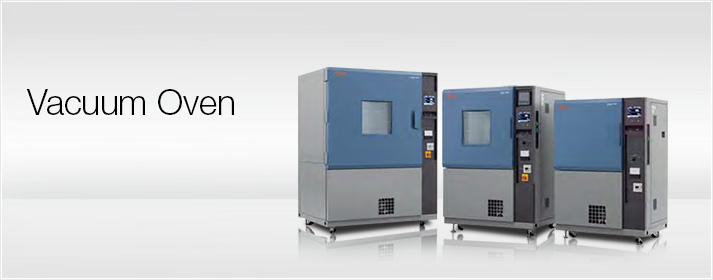

Vacuum Oven

VAC series

Fundamental equipment for electronics production

These units has been exclusively designed for vacuum heat treatment such as defoaming, deaerating, hardening or drying, essential processes in the production of electronic components.

Eco model

Thanks to improved air-tightness and sealing capacity, the chamber achieves 20 to 40% savings in energy consumption. (Compared to previous model)

Program operation

Control programs possible by combining temperature and 5 pressure operation modes.

Variety of options

More than 20 options are available to meet customers' needs.

Specifications

Model Temperature & pressure range Inside / Outside dimensions (mm)
VAC-101P +40 to +200°C (+104 to +392°F) / 933 to 1×102Pa W450×H450×D450 / W902×H1392×D780
VAC-201P W600×H600×D600 / W1052×H1532×D930
VAC-301P W800×H800×D800 / W1252×H1772×D1130

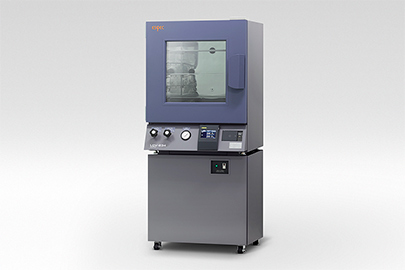

LCV series

Specifications

Model Temperature & pressure range Inside / Outside dimensions (mm)
LCV-234 Ambient temperature to +200°C (+392F) / (Gauge) 0 to -101kPa W450×H450×D450 / W670×H890×D735
LCV-244 W550×H550×D550 / W770×H990×D835
