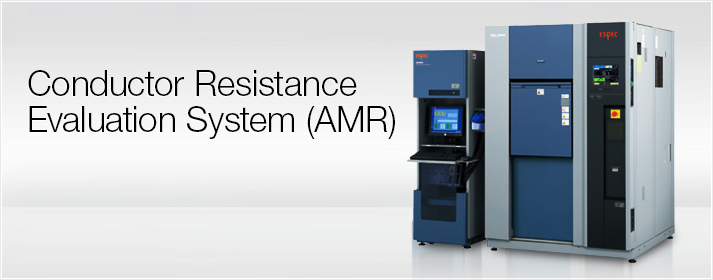

Conductor Resistance Evaluation System (AMR)

Efficient evaluation of the reliability of connectors

This system enables continuous measurement of micro resistance values of solder joints and conductor parts of connector contacts in low-temperature and high-temperature thermal cycle environments. Automatic measurement, data storage, and data processing are operated systematically with a computer. Featuring data graphs, compatibility with spreadsheet software, and data processing via LAN, this system enables more accurate and efficient connection reliability evaluation.

Main specifications

Application system Direct electric current measurement system Alternating electric current measurement system
Channel configuration Standard 40 channels (maximum 280 channels per rack)
Measurement interval Min. 3 seconds (10 channels), Variable in 3 sec. increments
Resistance measurement range (Ω) 1×10-3 to 1×106Ω 1×10-3 to 1×104Ω
Measurement accuracy*1 10 mΩ, ±5% of measured value or less
Minimum resolution 100μΩ 10μΩ
Measurement range 1Ω, 10Ω, 100Ω, 1kΩ, 10kΩ, 100kΩ,1MΩ and AUTO 10mΩ, 100mΩ, 1Ω, 10Ω, 100Ω, 1kΩ, 10kΩ and AUTO
Outside dimensions W530×H1750×D940mm
