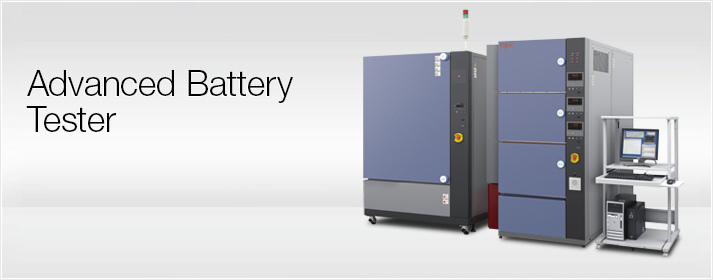

Advanced Battery Tester

All-in-one secondary battery charge-discharge evaluation system

The Advanced Battery Tester is a completely new battery charge-discharge tester with an integrated charge-discharge system and chamber. This system has four functions (performance test, endurance test, temperature characteristic test, and impedance evaluation) to make the most of the battery characteristic evaluation.

Main specifications (example)

Model ADBT-5-1 ADBT-5-10 ADBT-5-50 ADBT-6-400
Test area Temperature control range -40°C to 100°C
Temperature uniformity ±1.5°C
Output voltage Setting ranges 0 to 5000 mV (5 V) 0 to 6000 mV
(6 V)
Output accuracy ±0.1% of F.S. ±0.03% of F.S.
Output current Setting ranges 0 to 1 mA
0 to 10 mA
0 to 100 mA
0 to 1000 mA(1A)
0 to 100 mA
0 to 1000 mA(1A)
0 to 10000 mA(10A)
0 to 500 mA
0 to 5000 mA(5A)
0 to 50000 mA(50A)
0 to 40 A
0 to 400 A
Output accuracy ±0.1% of F.S. ±0.03% of F.S.
Output power Setting ranges 0 to 5 W 0 to 50 W 0 to 250 W 0 to 2000 W
Output accuracy ±0.2% of F.S. ±0.08% of F.S.
Parallel function 2 parallel - 16 A 80 A -
4 parallel - 32 A 160 A -
Measurement points Current/voltage Current 1 point/channel, voltage (specimen edge) 1 point/channel
Temperature 1 point/channel 2 points/channel 1 points/channel

* To use the parallel function, a parallel-dedicated battery holder is required separately.

System variation

Type Three-chamber type Single-chamber type Wide single-chamber type Four area-chamber type
Three-chamber type Single-chamber type Wide single-chamber type Four area-chamber type
Interior dimensions (mm) W 510
H 400
D 400
×3chambers
W 640
H 850
D 544
W 890
H 850
D 544
W 1130
H 980
D 525
Outside dimensions (mm) W 950
H 2022
D 1300
W 1250
H 1875
D 1560
W 1720
H 2030
D 1690
W 1590
H 2410
D 1954
Standard ADBT-5-1 5V/1A 72ch
(24ch/chamber)
72ch
ADBT-5-10 5V/10A 72ch
(24ch/chamber)
72ch
ADBT-5-50 5V/50A 24ch
(8ch/chamber)
24ch
High-
speed
High-
current
ADBT-6-400 6V/400A 3ch
(1ch/chamber)
contact us 4ch 4ch
ADBT-6-600 6V/600A 3ch
(1ch/chamber)
contact us contact us 4ch
ADBT-6-100 to
ADBT-6-1600
6V、100A to
1600A
Please contact ESPEC or your dealer regarding chamber combinations.
* A parallel connection (for 2-unit and 4-unit operation) is available for 5V, 10A and 5V, 50A testers.
* Requires separate battery holder for use with parallel connection.
