ARS-1100
| Total load resistance | Shelf load capacity (Included shelf weight) |
Floor load | Inside dimension (W x H x D) |
Ramp Rate | Range |
|---|---|---|---|---|---|
| 150 | 38 | 150 | 1,100 x 1,000 x 1,000 mm | Pull down rate : 4.1°C/ min Heat up rate : 4.7°C/ min |
Temperature :-75°C to +180°C Humidity: 10% RH to 98% RH |
Standard Type

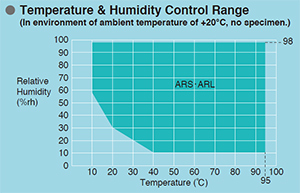

Temperature & humidity range
Minimum temp.: -45°C/-75°C
Maximum temp.: +180°C
Humid. (ARL & ARS only): 10 to 98% RH
Temperature change rate
| Capacity | 220L | 390L | 680L | 1100L | 680L | 1100L |
|---|---|---|---|---|---|---|
| Temp. range |
-49.5⇔+154.5°C | -22.5⇔+157.5°C | ||||
| Heat up Pull down |
6.0K/min. 5.2K/min. |
5.0K/min. 4.0K/min. |
6.0K/min. 4.2K/min. |
4.7K/min. 4.1K/min. |
6.3K/min. 4.8K/min. |
4.7K/min. 4.4K/min. |
* In environment of ambient temperature of +20°C, no specimen.
Big tolerance for heat load
Temperature only: up to 4500W
Temp. & humid.: up to 500W
Allowable heat load is different depends on models and operation conditions. Please refer to our brochure for the details.
Specimen temperature control (standard)
Attaching a temperature measurement sensor to the specimen enables the temperature of the specimen to be monitored and controlled.
Easy access to specimen
Equipped with φ50mm cable port on both right & left sides as standard.

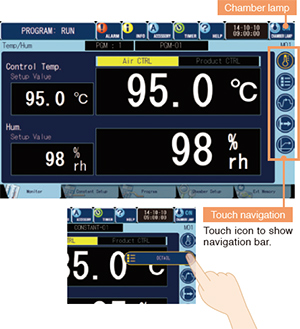

N-instrumentation equipped with a color LCD touch panel
Wide 7-inch screen with LED backlight is clearer and provides faster display speed.
* Continuous operation at or below +40°C is limited because of frost formation on the cooler and dehumidifier.
Cable ports on both sides
Instrumentation
