ARSF-0800-15
| Total load resistance | Shelf load capacity
(Included shelf weight) |
Floor load | Inside dimension (W x H x D) |
Ramp Rate | Range |
|---|---|---|---|---|---|
| 100 | 37.9 | 100 | 1,000 x 980 x 800 mm | Pull down rate : 15°C/ min Heat up rate : 15°C/ min |
Temperature : -70°C to +180°C Humidity : 10% RH to 98% RH |
Rapid-Rate Temperature Cycle Type NEW

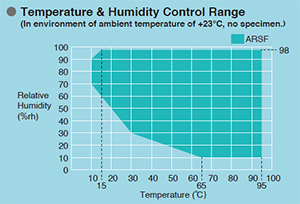

Temperature & humidity range
Minimum temp.: -70°C
Maximum temp.: +180°C
Humid.: 10 to 98% RH
Totally frost-free
Frosting will not appear on any part of the unit despite the temperature & humidity control range of range from 10 to 98% RH. Eradicating the need to remove frosting provides stable and continuous operations.
Big tolerance for heat load
Temperature only: up to 9000W
Temp. & humid.: up to 550W
Allowable heat load is different depends on models and operation conditions. Please refer to our brochure for the details.
Energy-saving with Dual PID Control
Dual PID Control (Proportional-Integral-Differential: control that enables the segmentation of refrigeration capacity) mostly controls only the refrigerator at 0°C or lower, thereby saving energy.
Specimen temperature control (optional)
Attaching a temperature measurement sensor to the specimen enables the temperature of the specimen to be monitored and controlled.
Easy access to specimen
Equipped with cable ports on both right & left sides as standard.

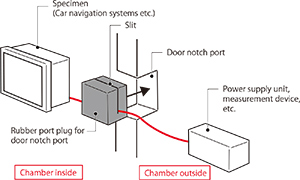

Door notch port is also available to put cables through the door (option).
* Totally frost free, no limitation of continuous operation.
Instrumentation
Door notch port
